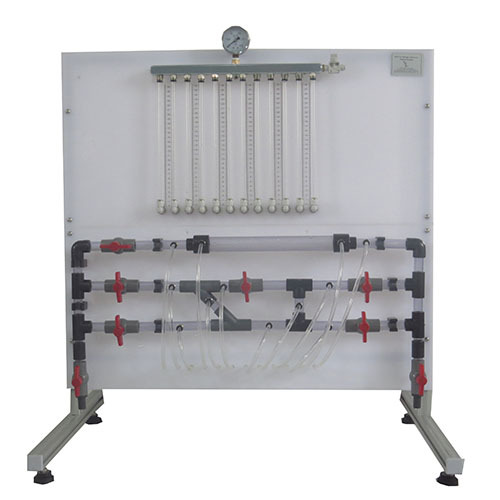

ZM7115 Energy Losses in Piping System Fluids Engineering Training Equipment Educational Equipment Vocational Training Equipment1.Technical data
Pipe section to hold fittings or measuring objects , PVC
Pipe sections, PVC
- sudden contraction:, PVC
- sudden enlargement: PVC
- with 2x Y-piece 45° and 2x T-piece
- with 2x 90° elbow/bend: d=20x1,5mm, PVC and
2x 45° elbow: d=20x1,5mm, PVC
2x twin tube manometers: 0...1000mmWC
Weight: approx. 58kg
Remark: don’t contain water source, if add, price will change.
2.Related experiment
- pressure losses in pipes, piping elements and fittings
- how the flow velocity affects the pressure loss
- determining resistance coefficients
- opening characteristics of angle seat valve and gate valve
- familiarisation with various measuring objects for determining flow rate:
* Venturi nozzle
* orifice plate flow meter and measuring nozzle
