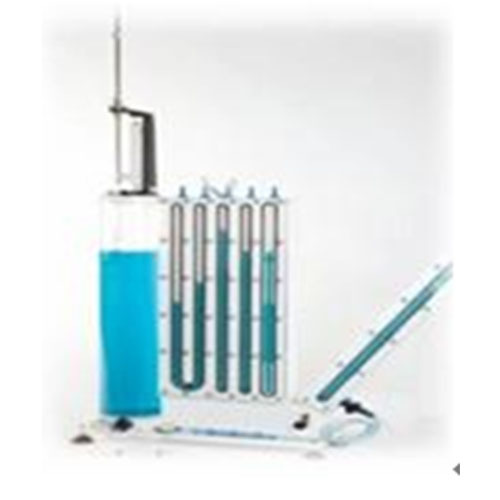

ZM8208 Fluid Statistic And Manometer Apparatus Fluids Engineering Training Equipment Educational Equipment Vocational Training Equipment1.Description:
designed to demonstrate the properties of Newtonian fluids and their behaviour under hydrostatic conditions (fluid at rest).
This enables students to develop an understanding and knowledge of a wide range of fundamental principles and techniques, before studying fluids in motion.
These include the use of fluids in manometers to measure
pressure and pressure differences in gases and liquids.
2.Technical details:
Overall dimensions:
Height: 1250mm (maximum to top of level gauge)
Width: 425mm
Depth: 150mm
Max depth inside reservoir: 574mm
Inside diameter of reservoir: 100mm
Scale length of manometer tubes: 460mm
Manometer tubes incorporated:
1x ‘U’ tube
2x Vertical parallel tubes
1x Vertical tube with varying cross section
1x Vertical tube with pivot enabling
operation at three different inclinations
