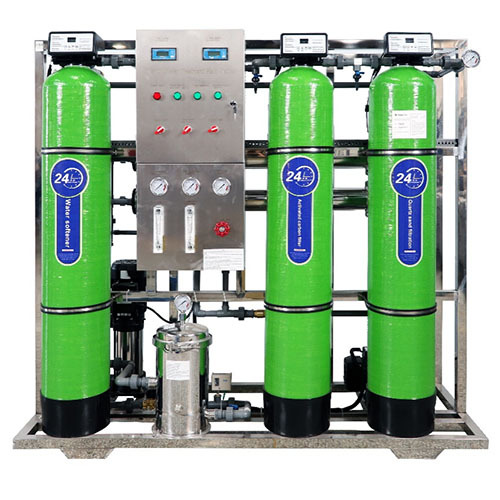

ZM8101 Water Treatment Plant Trainer Fluids Engineering Training Equipment Teaching Equipment Didactic Equipment
1. Product Introduction
1.1 Product Description
Reverse osmosis refers to the use of sufficiently large pressure to separate the solvent (usually water) in the solution through the reverse osmosis membrane (a semi-permeable membrane), and its direction is opposite to the osmotic direction. Using the reverse osmosis process with a pressure greater than the osmotic pressure, the liquid can be separated, purified or concentrated.
Using osmosis technology, dissolved salts, colloids, bacteria, viruses, bacterial toxins and most organic matter in water can be effectively removed.
1.2 Product Features
1. Real-time water quality detection function, to understand the water quality of the outlet water at any time. (Applicable to installation of TDS detection equipment, not applicable if not installed)
2. Fully automatic control of the programmable controller, humanized operation display system, only one button or knob
can be used to operate the equipment, and it is equipped with tap water stop protection and full water shutdown function.
3. The system automatically flushes when it is turned on, avoiding the trouble of manual flushing, which has effectively extended the service life of the RO reverse osmosis membrane.
4. Refined appearance and strong safety performance.
5. Real-time display of flushing, water production, water fullness and water shortage functions.
6. The equipment has a timed flushing program when it is turned on, with low pressure and high pressure protection functions.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: three-core AC220V
Working pressure parameters: membrane front pressure 0.8 kg, wastewater pressure 0.5 kg, working pressure cannot exceed 10 kg.
Water source pressure requirements: water pressure needs to be between 0.15~0.4MPA.
Working conditions: The equipment working environment is 5℃-45℃. (Overcooling and overheating will damage the equipment)
2.2 Dimensions and weight
Dimension 1: 1750mm*650mm*1600mm
Weight 1: <350kg

3. Product component names and function introduction
3.1 Product main body
3.2 Product electrical part
3.3 Product accessories
4. Product Configuration List
5. Product teaching experiment list
(1) Preparation before installing the trainer equipment
(2) Installation process of the trainer equipment
(3) Flushing method of the trainer equipment and replacement of filter materials
(4) Use of reverse osmosis machine
